Pumping B

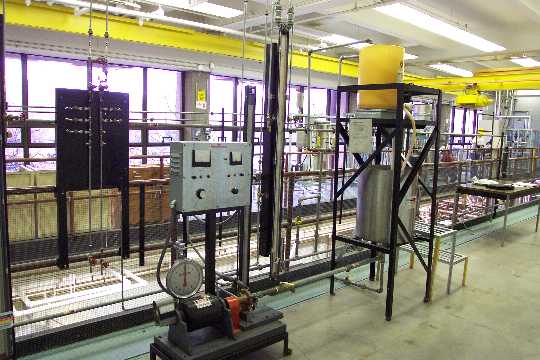

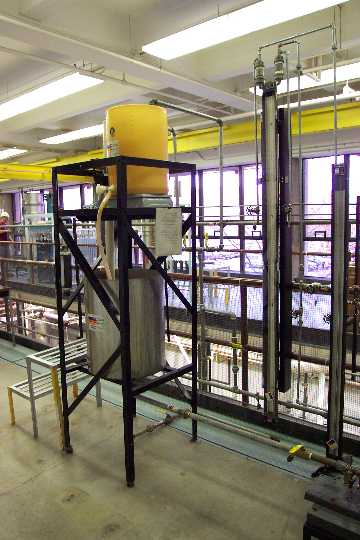

This experiment is similar to the Pumping A apparatus, except this pump is driven by a DC motor and uses a Prony brake to measure torque. In addition the piping system allows analysis of branched piping systems and pressure drop through several common pipe fittings.

Supplemental Notes

Examples of Centrifugal Pump Curves
